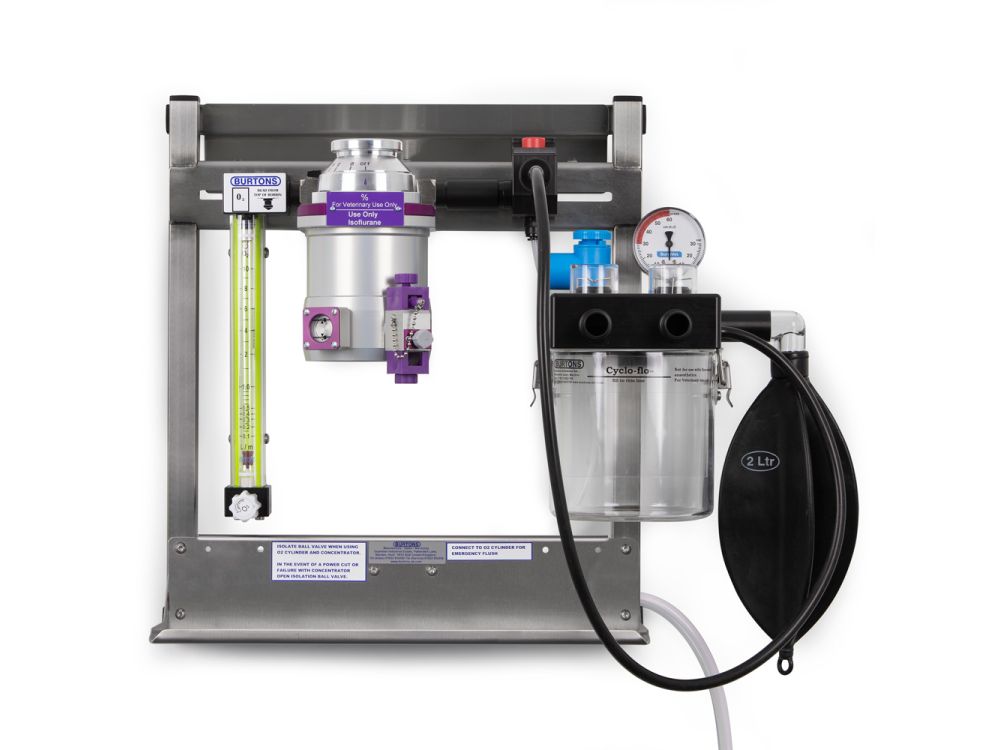

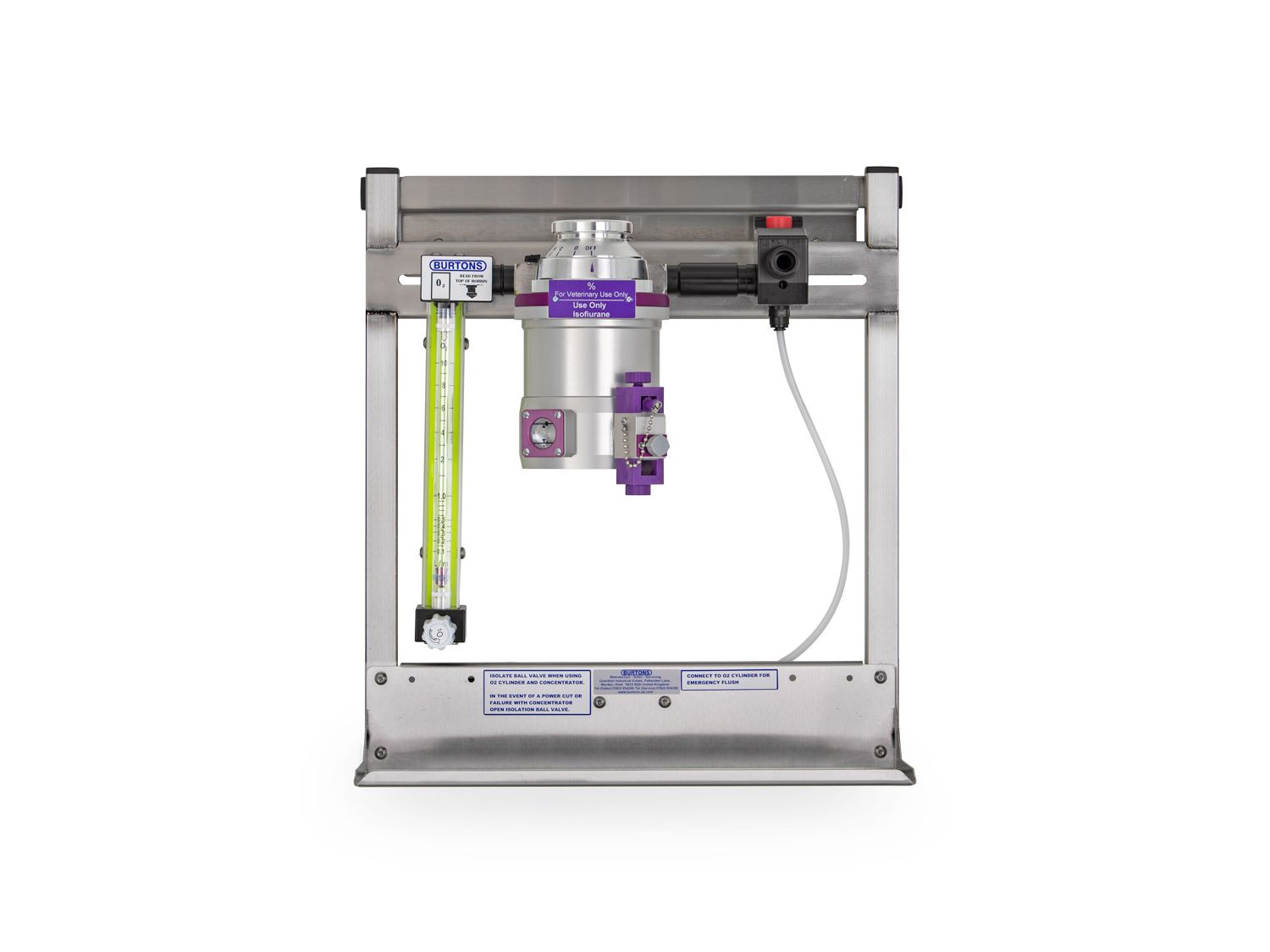

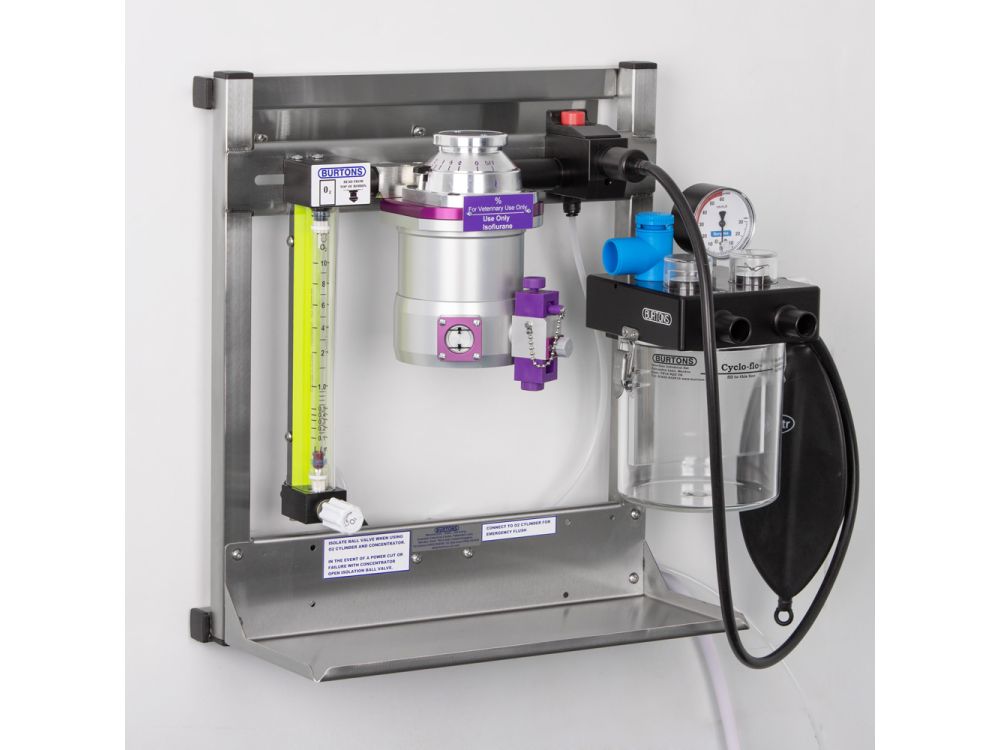

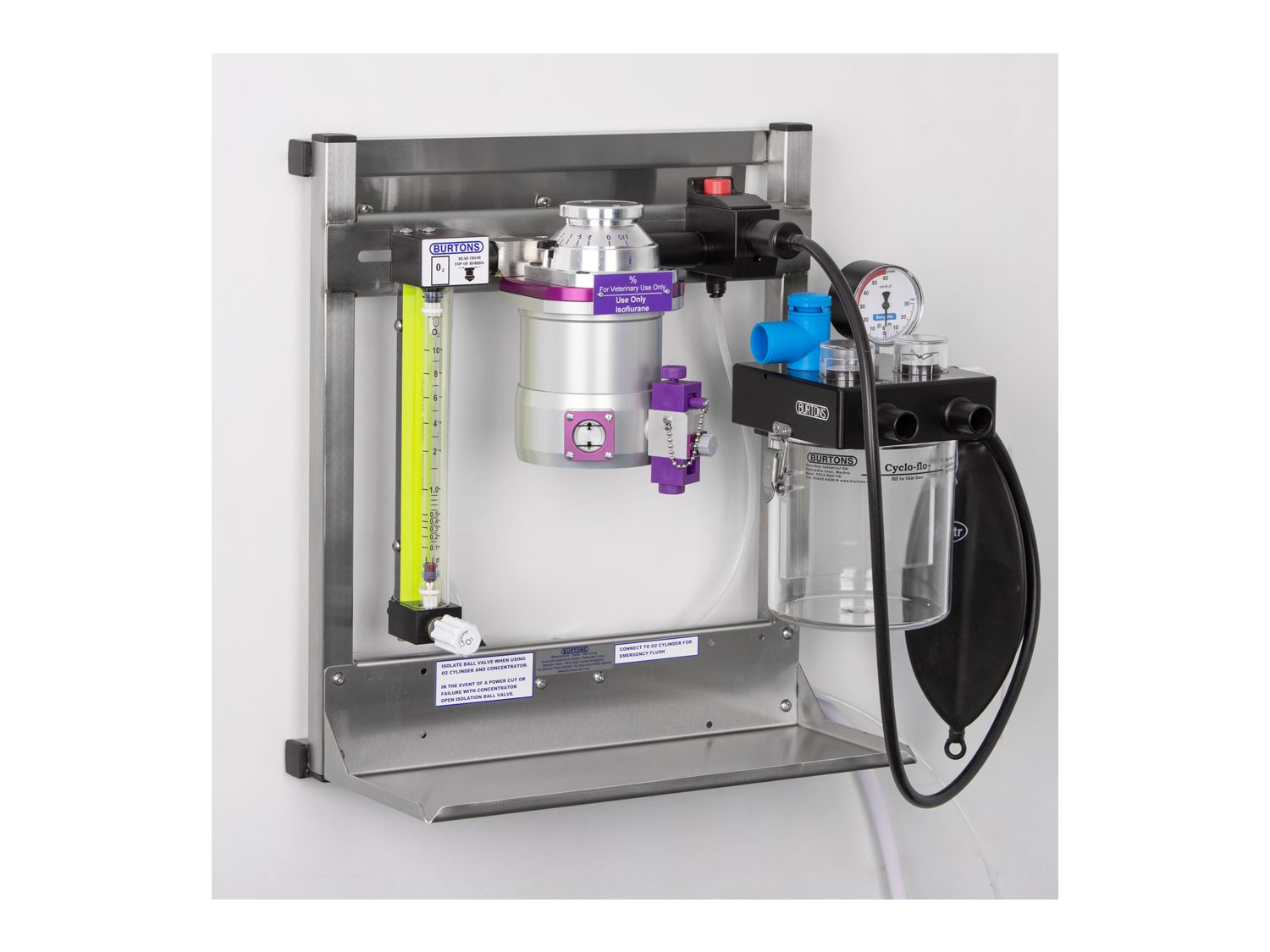

Burtons Wall Mounted Anaesthesia Machine

The wall mounted anaesthetic machine is extremely popular in situations where floor space is at a minimum and is an ideal choice for piped gas systems.

This high-quality wall-mounted anaesthesia machine is made entirely from stainless steel. The built-in, high-accuracy rotameter is able to provide up to 10 l/min O² and 12 l/min N²0 (selected machines). Safety is top priority with all Burtons machines having a built-in emergency O² flush with pressure safety valve as standard and an optional O² alarm. The unit is supplied with a built-in shelf, 1 meter pipeline lead and a quick-release wall mounting bracket, making it simple and easy to move between locations. 

Choose from O2 only and dual O2 + N2O model options, and for added peace of mind, why not add an O² alarm to your machine?

All models are supplied with:

• 1 metre gas supply leads with indexed BS Schrader probes
• High-accuracy rotameters for precise control of gas flow rates
• Corner unit outlet with built-in emergency oxygen flush
• Non-return valve and safety valve
• 304 stainless steel frame - High-quality, medical grade frame – durable, robust, easy-clean and manufactured to last
• Designed, developed and manufactured by Burtons in the UK

Find out more about the key features and benefits of a Burtons Anaesthesia Machine in our Buyer’s Guide Here:

Burtons | Choosing an Anaesthesia Machine for your practice

Technical Specification: 

• Overall size: 21cmD x 40cmW x 47cmH (see diagram of dimensions above)
• Outlet connector: BS22mm Male
• Flow control: O² 0.1 to 10 l/min and N²O 0.1 to 12 l/min (where applicable)

Easy Installation:

Each unit is supplied with a separate wall mounting bracket. The unit is then simply lifted in and out of the bracket, enabling you to easily move it between locations. Additional brackets are available as an optional extra.


Don't forget your Vaporiser

The Series 3 is a temperature-compensating, out-of-circuit vaporiser in a traditional design, familiar to most veterinary practitioners. Calibrated specifically for the specified anaesthetic drug using a laser refractometer.  Please note: Vaporiser Sold Separately

Fitting Type

Choose from the standard taper mounted fitting (cage mount) (UNI) or the quick release (QR) option; allowing you to easily swap the vaporiser to different anaesthetic machines throughout the practice. Additional quick-release compatibility blocks will be required for each anaesthesia machine. (Available separately)

Key filled or Funnel (Pour fill)

Key filled (KF) systems require the addition of key filler adaptors but are generally safer and have a lot less wastage compared to standard funnel filled (FF) vaporisers, saving you money in the long run.

Manufactured to last

Burtons Veterinary - At the heart of veterinary anaesthesia for over 30 years.

We don’t just supply it! It was designed and built by Burtons in the UK, made to the exacting high standards of British manufacture since 1981, at our principal manufacturing facility in Staplehurst, Kent. Using the latest CNCs and laser manufacturing processes and high-quality stainless-steel materials, this product has been engineered from the ground up to last!

This allows us to reduce our carbon footprint with incredibly low product mileage, made with fully recyclable materials, which contribute to a circular economy.

Free Expert Commissioning with Every Anaesthesia Machine

At Burtons, we support you from day one. That’s why we offer free onsite commissioning with every anaesthesia machine purchase.

Once your order is confirmed, one of our expert service engineers will be in touch to arrange a visit at a time that suits you. During the visit, they will:

• Fit and calibrate your vaporiser
• Test and check that your machine is working perfectly
• Install your concentrator if required
• Answer any questions and walk you through the setup and operation



We’ll make sure you're fully set up and ready to go, with the option of additional training from your local product expert if needed.

Please note: bracket fitting or any construction work is not included as part of commissioning.



Annual Anaesthesia Machine Service Plans Available

Keep your machine performing at its best with our annual service plans, designed to maintain accuracy and reliability at the heart of your anaesthesia system. Enjoy peace of mind with ongoing support from our UK-based expert service team, just a phone call away.



Discover your perfect Anaesthesia Machine with Burtons using the 8-page Equipment Guide in the latest edition of the Burtons Insight Magazine (Pages 12-19) here:

Burtons Insight (Edition 6) - Anaesthesia Machine Equipment Guide
