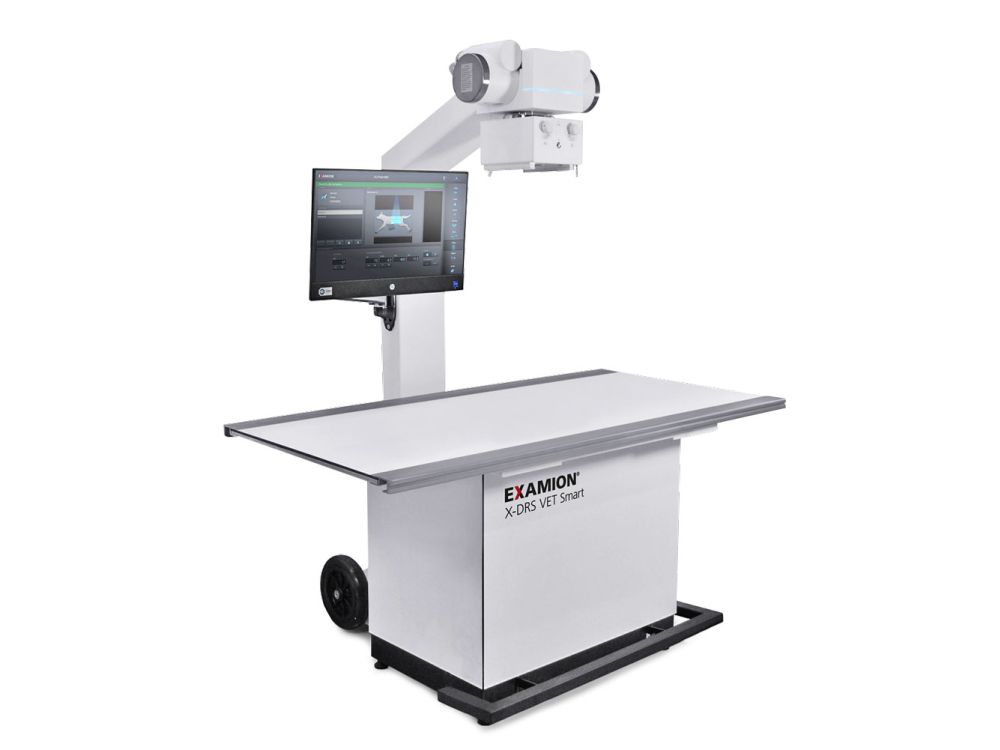

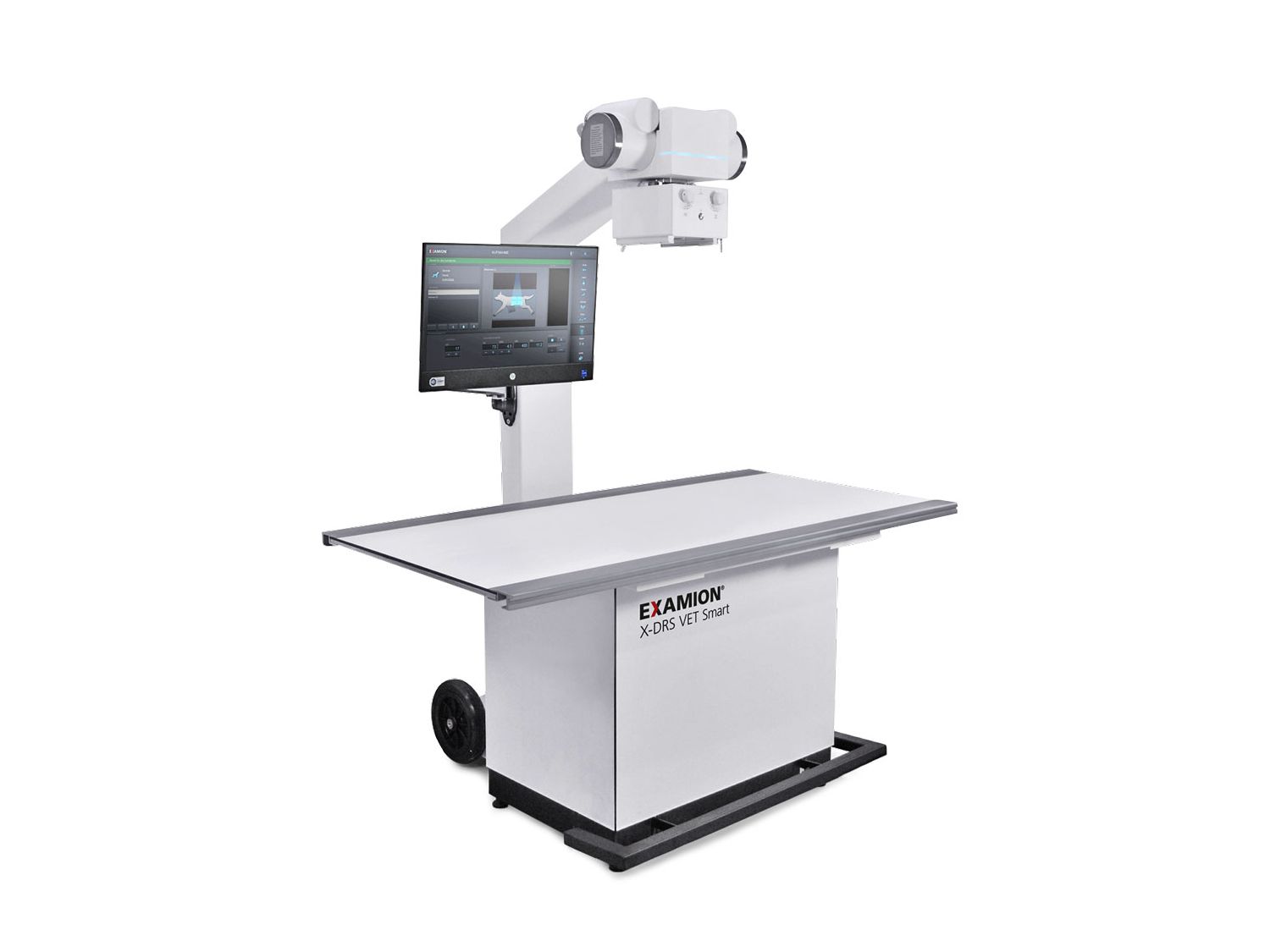

Introducing the X-DRS VET Smart: a complete DR X-ray system for small animal practices.

Engineered with advanced technology, this robust and adaptable system delivers exceptional image performance tailored to meet the unique demands of veterinary radiography.

Improve practice diagnostic accuracy and ensure patient safety with an adaptable system that allows for imaging across various animal sizes and conditions. With lower voltage and shorter exposure times that are ideal for smaller or delicate animals, and higher settings that provide detailed imaging for larger animals or more complex conditions.

With 352 pre-set programs you can be confident in selecting the optimal settings required for specific diagnostic scenarios at the click of a button, reducing human error and improving workflow efficiency in high-volume practices. You can select these options using the easy-to-use, touchscreen monitor.

The Examion XL wired CsI detector panel is included as standard, providing high-resolution imaging with reduced radiation exposure. Due to its XL size, the panel is suitable for a wide range of small animals, from very small pets to larger dog breeds.

A floating table design allows for easy and precise patient positioning, simply adjust the table to re-position your patient for the ideal angle.

Software

The AQS software suite is included in this package and enables seamless management, storage, and sharing of image data. Easily access and export images in multiple formats, ensuring efficient collaboration and record-keeping.

Includes the following modules:

• Archiving on CD/DVD
• Data Compression
• Patient CD/DVD
• Import Bitmap Images/ DICOM Images/ AQS Images
• Image Export
• Mail Export

Package Includes:

• Detector: X-DR XL wired, 43cm x 43cm (17”x17”), CsI
• Monitor: All-in-one PC with a 24-inch display
• Power Output: Up to 32 kW / Tube voltage 40 kV to 125 kV
• Table Dimensions: 160cm x 64cm x 78cm (63” x 25.20” x 30.70”)
• Warranty: Comprehensive 5-Year Full Exchange Warranty

Specifications:

• Generator: 32kW / max 400mA
• Voltage range: 40 -150kV Tube
• Focal spots: 0.6 / 1.2mm
• Exposure time range: 1ms – 10000ms
• Programs: 352 pre-programmed
• Combi server: 1 TB
• Monitor: X-HW More Multitouch
• Tabletop: 160cm x 81cm, floating longitudinal ±30 cm (11.8”) Transversal ±10cm (3.9”) Mains Connection: 230V – 50/60Hz 1-phase (wall plug)
• Detector: X-DR XL Wired, 43cm x 43cm (17” x 17”)
• X-AQS PACS Vet: X-AQS Module Archiving on CD/DVD / X-AQS Module Data Compression / X-AQS Module Patient CD/DVD / X-AQS Module Import Bitmap Images / X-AQS Module Import DICOM Images / X-AQS Module Import AQS Images / X-AQS Module Image Export / X-AQS Module Mail Export X-AQS Client: 1 workstation (expandable up to 4 workstations) / X-AQS Viewer / X-AQS Diagnosis / License per Client, floating license for X-AQS Software
