This complete dental CR system delivers high-quality dental images quickly and affordably for the veterinary clinic.

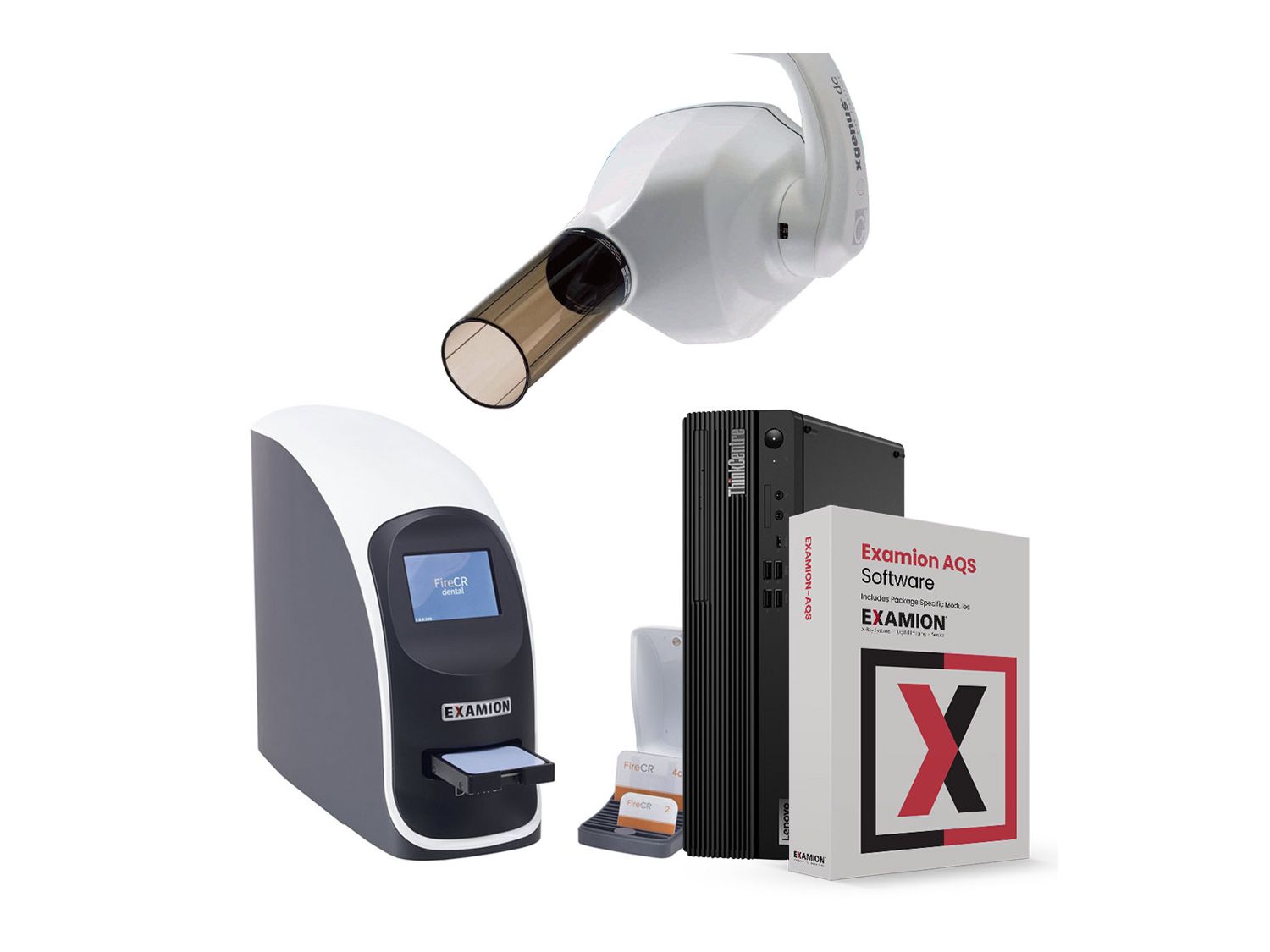

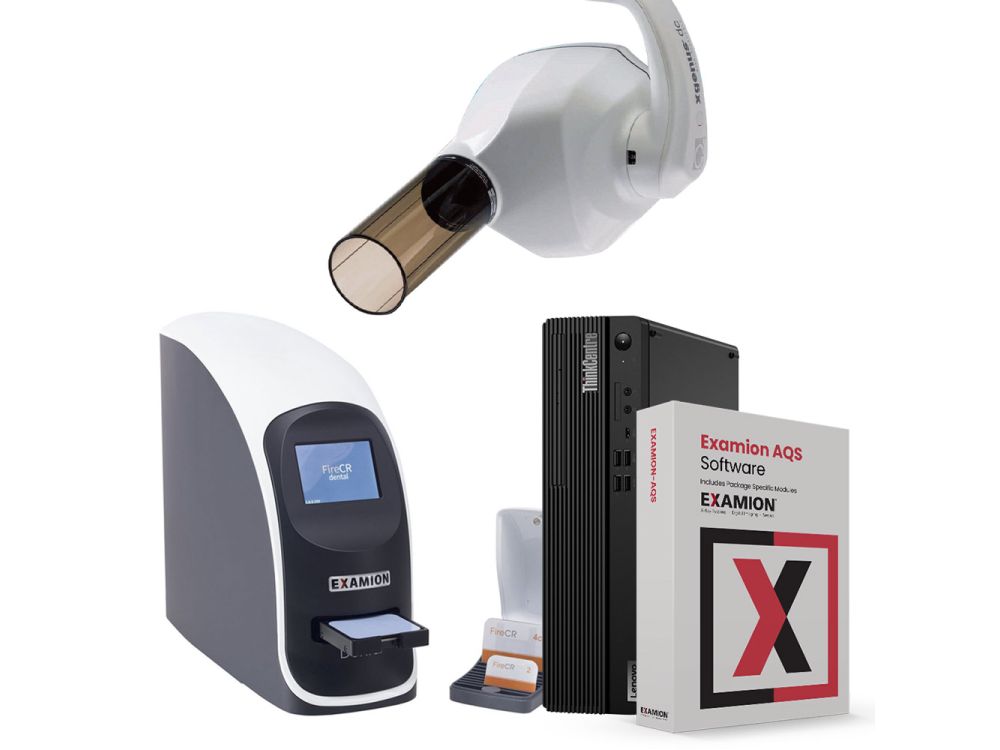

This bundle includes The Examion FireCR Reader + Examion AQS Software + PC/Acquisition station + a wall-mounted generator with a standard arm.
Upgrade to the Premium Fire CR Reader for larger plate support, enabling rapid examination and reduced radiation exposure. The large size 4 plate can also be used to image extremities.

This dental CR solution is a complete package and no other existing radiography system is required to get started.
It includes:

• FireCR reader
• Lenovo PC (Acquisition station)
• Includes Imaging Plate Kits:
  - x2 Size 2 Plates (Includes 100 Protective Size 2 Sleeves)
  - x2 Size 4c Plates (Includes 100 Protective Size 4c Sleeves)
• Cleaning fluid
• Examion AQS software including the following modules: X-ray, FireCR control, Image optimisation, 1 x license, AQS PACS.
• Static Dental Wall Mounted Generator with standard arm (184cm)

Please note: No monitor is included in this package.

The FireCR's compact size makes it suitable in even the smallest examination rooms, without compromising quality. It rapidly reads reusable, easy-to-position intraoral imaging plates, generating high-quality X-ray image results.

Working alongside the included dental x-ray generator, and the PC acquisition station, the included AQS software modules enable easy image acquisition, analysis and storage, creating a complete dental imaging system.

Imaging plates are processed by being placed directly onto the feeder, which magnetically holds them in place. This contact-free reading ensures a longer plate life and no additional cassette adapters are needed to read the imaging plate.

Key Features:

• Simple, two-step process – after exposure, the Fire CR provides fast, reliable images.
• Dental image plates are available in different dental sizes for different animal species.
• It’s rapid, high-quality reading of re-usable, easy-to-position bitewing, intraoral positioning plates instantly enhances your dental x-raying.
• Exceptionally compact at just 12cm wide and 26cm high, suitable for the smallest of spaces

Specifications:

• Supported Intraoral Imaging Plate sizes: Sizes 0 – 4c
• Pixel size: 35μm
• Sampling Pixel Pitch: 14.3 lp/mm
• Readout Time: 4.1 – 7.2s
• Resolution: Data Capture: 16bits/pixel, 65,000 graytones
• Eraser: Embedded
• Dimensions: 120mmW x 265mmH x 318mmD
• Weight: 4.7kg
• System configuration: table top
• Computer workstation minimum requirements: Intel Dual Core processor / 2GB RAM / 10GB free disc space/ Windows 7,8,10
