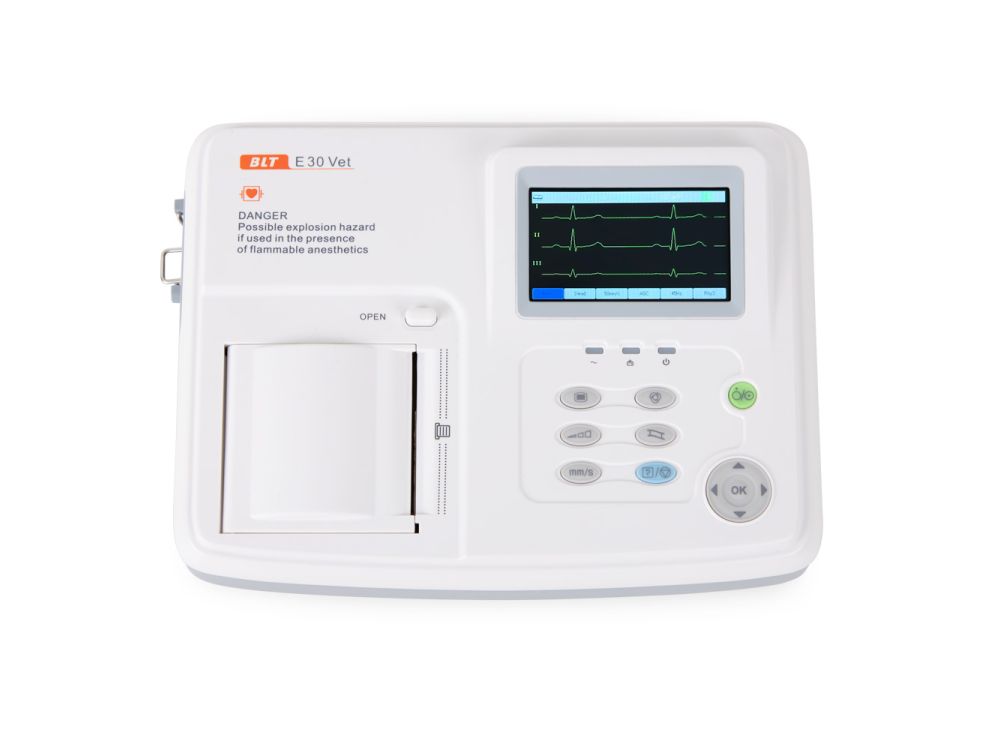

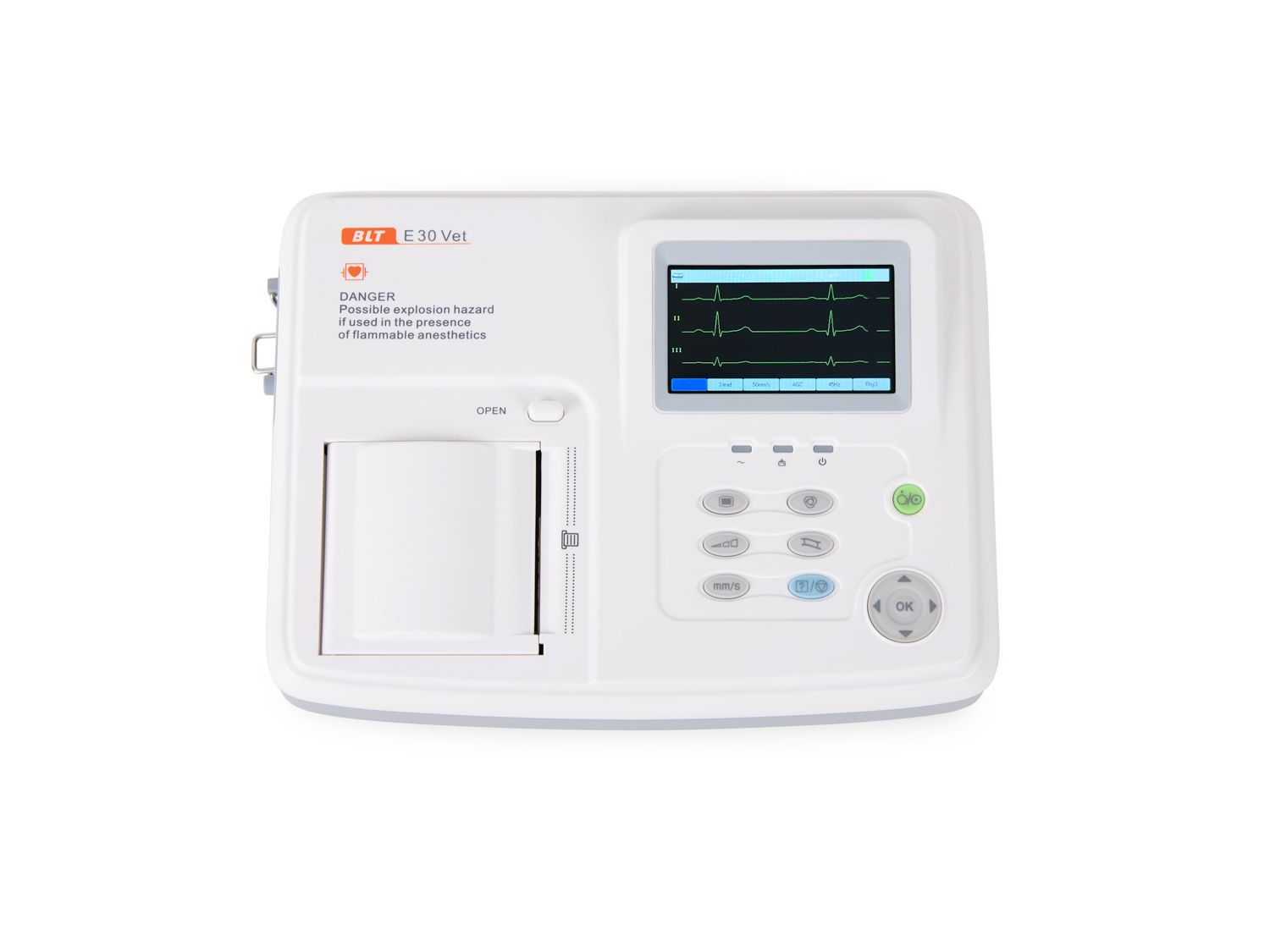

The E30 Vet ECG Machine is designed to make cardiac monitoring simple, accurate, and reliable in any veterinary practice.

With a lithium-ion battery and intuitive touchscreen interface, it’s easy to use whether you’re in the clinic or on the move.

Key Features

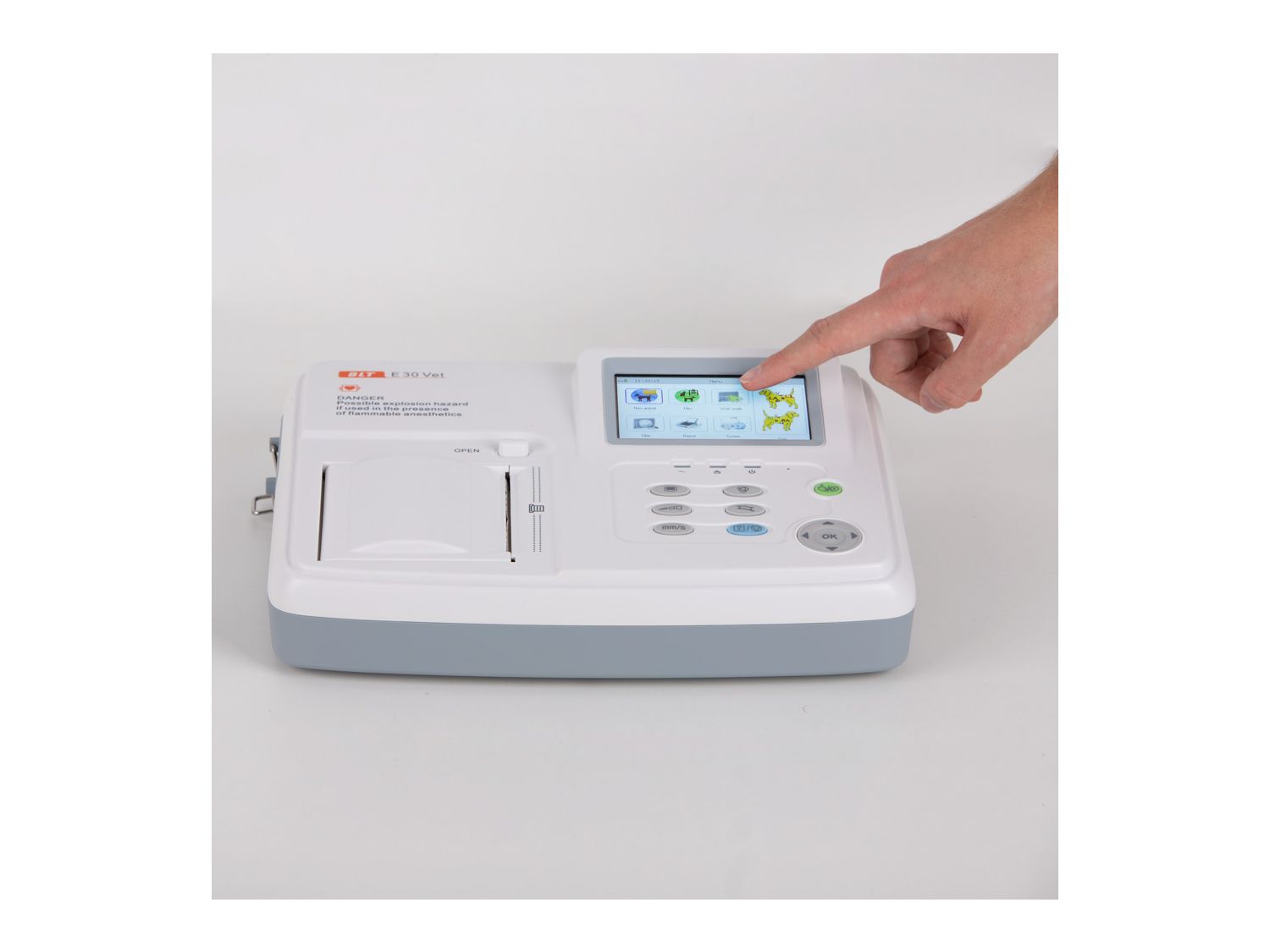

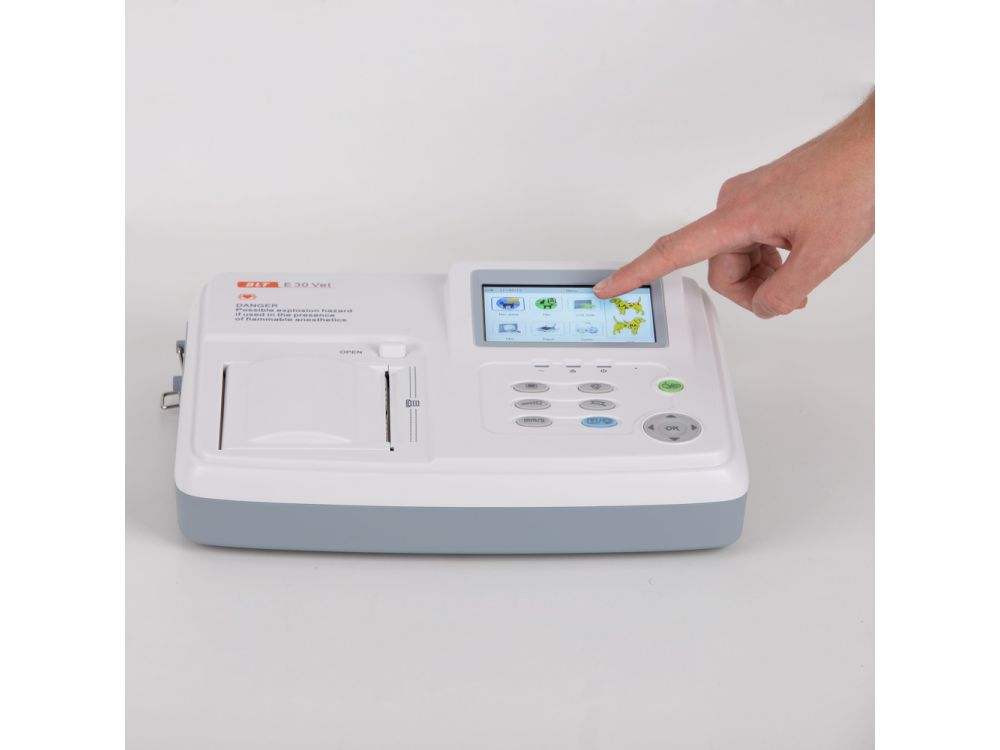

• Touchscreen display for quick and intuitive operation
• 7-lead ECG cable included
• Weighs only 1.6kg, so it can be easily moved around your practice

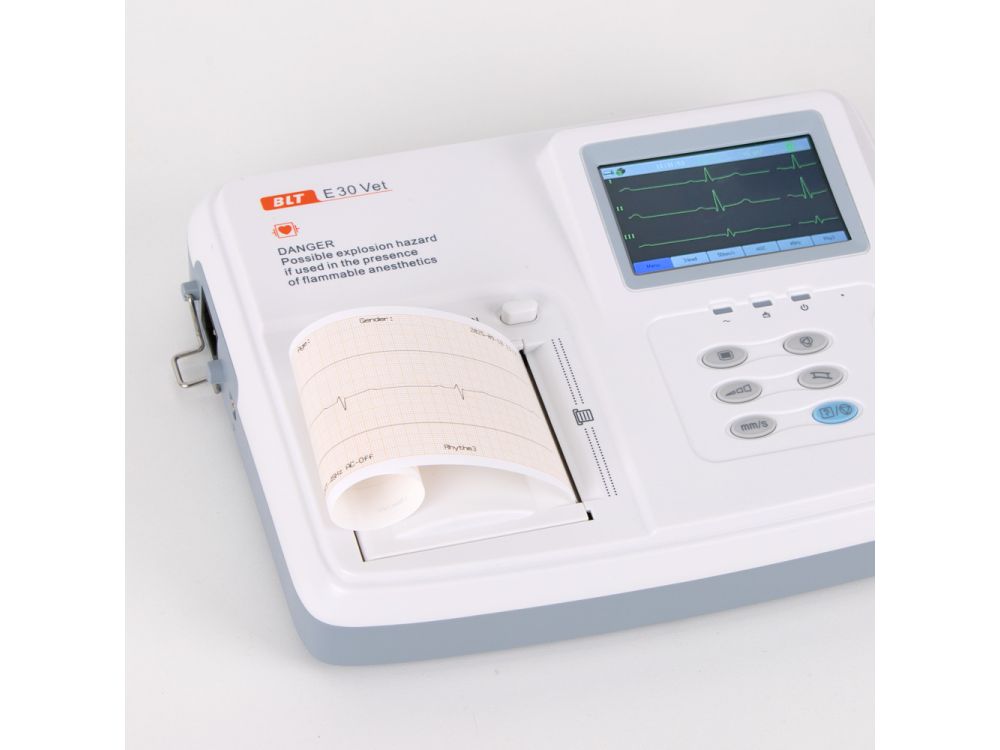

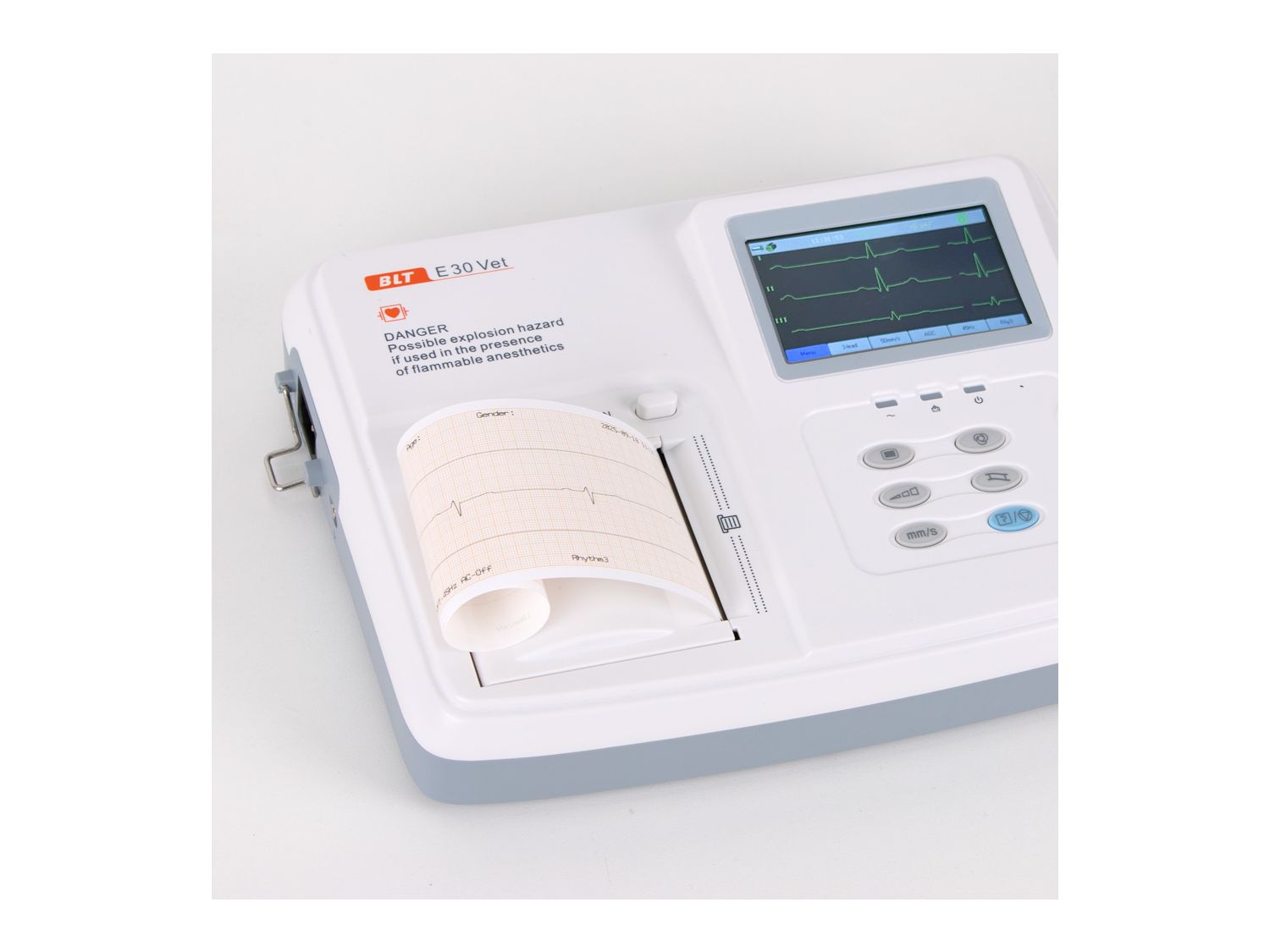

• Built-in high-resolution thermal printer for immediate results
• Rechargeable lithium-ion battery with up to 4 hours of continuous use
• Advanced ECG algorithm with automatic measurement and baseline adjustment for fast, accurate readings
• Powerful digital filter minimises interference to produce clean, precise ECG waveforms

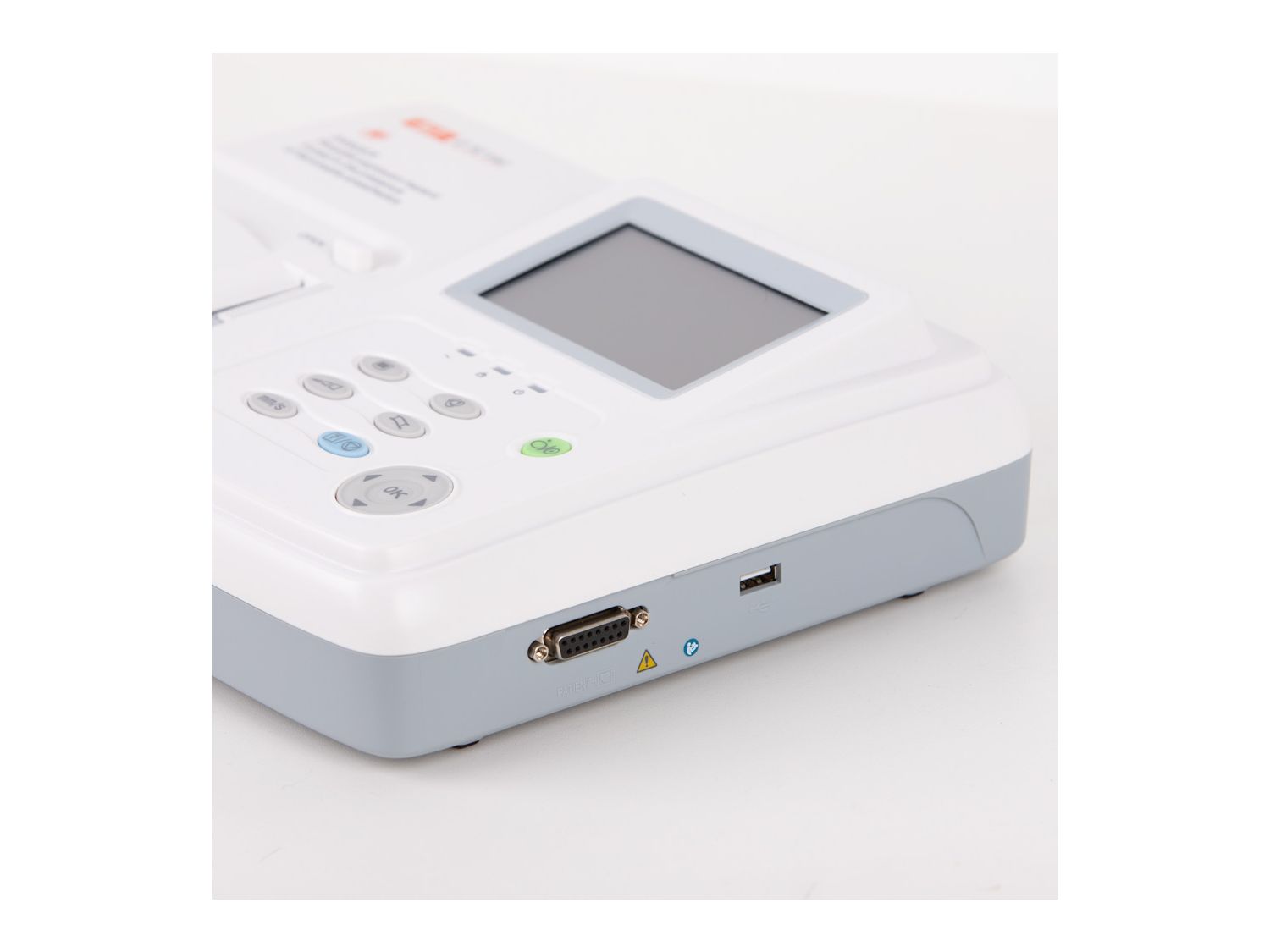

• USB port for efficient data export and sharing
• Cat, dog and equine pre-sets already set up

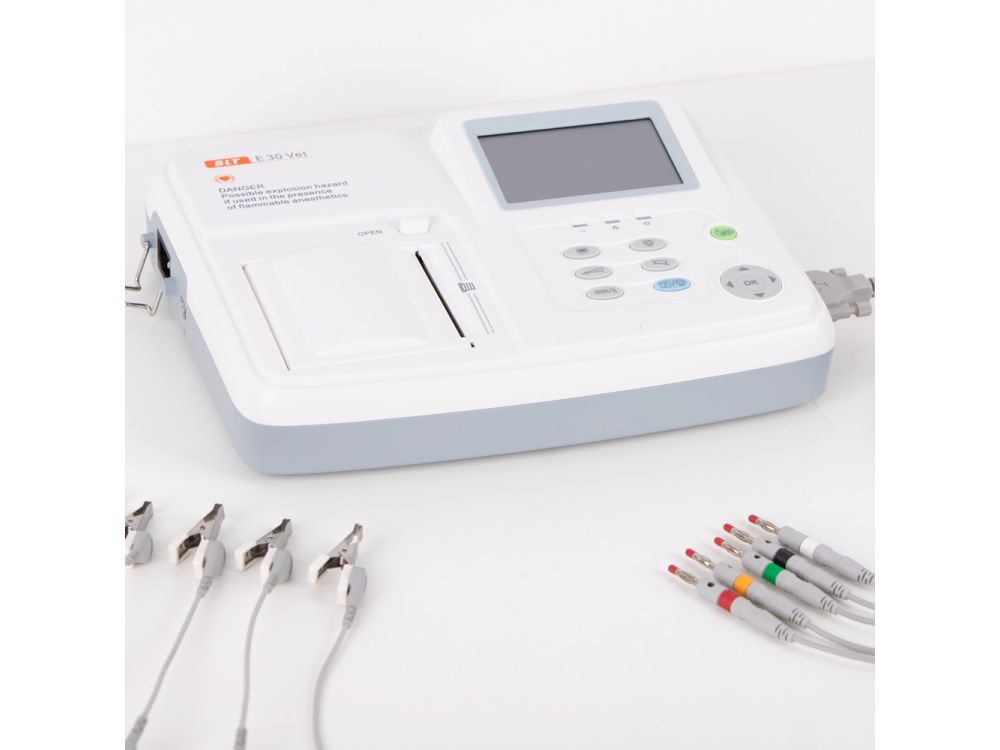

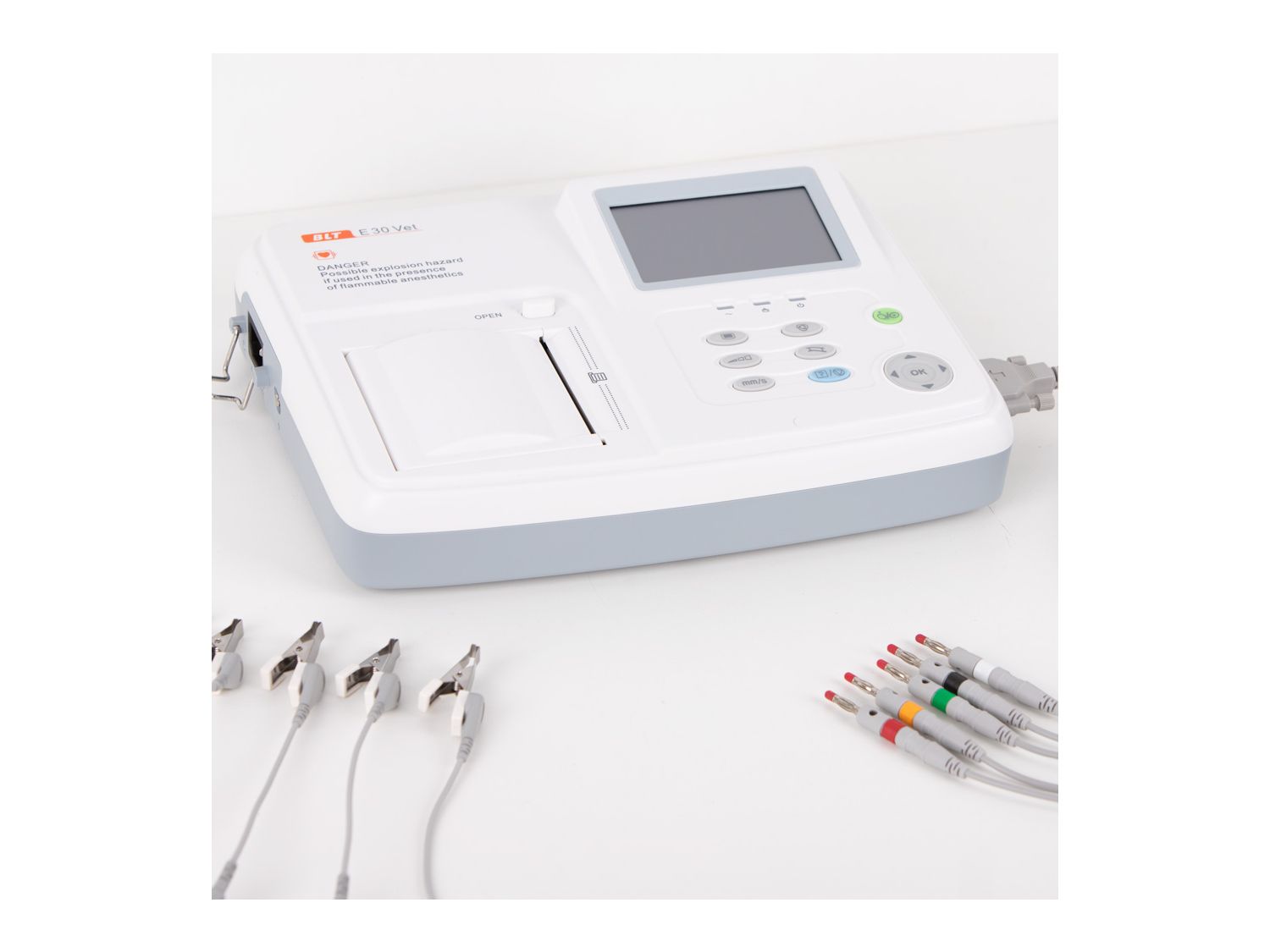

• Includes 1 x roll of printer paper, probes, clips and 7-lead ECG cable

Specifications

Size: 315mm x 215mm x 75mm
Net weight: 1.6kg
Display: 4:3” TFT LCD, resolution 480×272
Power: AC 100–240V, 50/60Hz or DC rechargeable lithium-ion battery (11.1V, 2Ah)

Safety

Class I, Type CF product with defibrillation protection
Isolation voltage: 4000V
Polarisation resistance: ±500mV
Recording
Thermal printing system with 80mm x 20m reel paper
Resolution: Vertical 8 dots/mm, Horizontal 40 dots/mm
Recording speeds: 5–50mm/s

Heart Rate

Measurement range: 30–300 bpm
Accuracy: ±1 bpm (average 10s)

Storage

Holds up to 200 ECG data groups in internal memory
External storage supported via USB

This reliable ECG unit ensures quick, accurate cardiac diagnostics with user-friendly operation—an essential tool for busy veterinary teams looking for dependable results every time.
